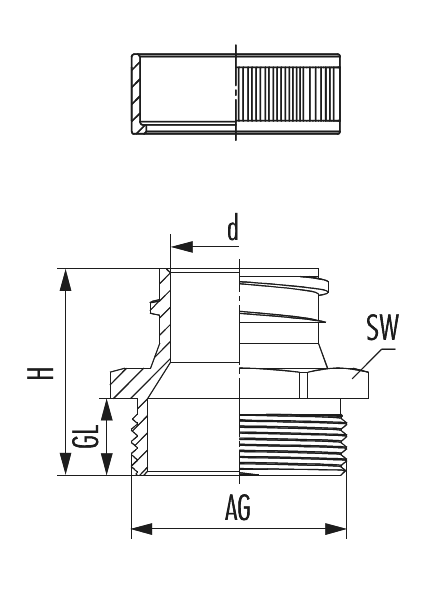

| AG | d (mm) | GL (mm) | H (mm) | SW(mm) | 适配金属软管DN | 订货号 | |
|---|---|---|---|---|---|---|---|
|
PG 7
|
6
|
8
|
24
|
15
|
7
|
1.570.0760.14
|
|
|
PG 9
|
7
|
8
|
24
|
17
|
9
|
1.570.0960.14
|
|
|
NPT 1"
|
23
|
16
|
38
|
45
|
37
|
1.570.1060.70
|
|
|
PG 11
|
9
|
10
|
26
|
20
|
11
|
1.570.1160.14
|
|
|
M12
|
6
|
8
|
24
|
15
|
7
|
1.570.1260.50
|
|
|
NPT 1/2"
|
14
|
13
|
29
|
22
|
16
|
1.570.1260.70
|
|
|
NPT 1/2"
|
12
|
13
|
29
|
22
|
14
|
1.570.1260.71
|
|
|
PG 13,5
|
12
|
10
|
26
|
22
|
14
|
1.570.1360.14
|
|
|
NPT 1/4"
|
6
|
10
|
26
|
15
|
7
|
1.570.1460.70
|
|
|
PG 16
|
14
|
10
|
26
|
24
|
16
|
1.570.1660.14
|
|
|
M16
|
9
|
10
|
26
|
20
|
11
|
1.570.1660.50
|
|
|
M16
|
7
|
8
|
24
|
20
|
9
|
1.570.1660.51
|
|
|
M20
|
14
|
10
|
26
|
22
|
16
|
1.570.2060.50
|
|
|
M20
|
12
|
10
|
26
|
22
|
14
|
1.570.2060.51
|
|
|
NPT 2"
|
20
|
15
|
34
|
35
|
26
|
1.570.2060.70
|
|
|
PG 21
|
18
|
10
|
27
|
30
|
21
|
1.570.2160.14
|
|
|
M25
|
18
|
10
|
27
|
28
|
21
|
1.570.2560.50
|
|
|
PG 29
|
23
|
12
|
31
|
40
|
26
|
1.570.2960.14
|
|
|
M32
|
23
|
12
|
31
|
35
|
26
|
1.570.3260.50
|
|
|
NPT 3/4"
|
18
|
15
|
32
|
28
|
21
|
1.570.3460.70
|
|
|
PG 36
|
33.5
|
14
|
36
|
50
|
37
|
1.570.3660.14
|
|
|
NPT 3/8"
|
9
|
11.5
|
27.5
|
20
|
11
|
1.570.3860.70
|
|
|
NPT 3/8"
|
7
|
11.5
|
27.5
|
20
|
9
|
1.570.3860.71
|
|
|
M40
|
33.5
|
14
|
36
|
45
|
37
|
1.570.4060.50
|
|
|
PG 42
|
37
|
14
|
36
|
60
|
40
|
1.570.4260.14
|
|
|
PG 48
|
46
|
14
|
36
|
65
|
51
|
1.570.4860.14
|
|
|
M50
|
37
|
14
|
36
|
55
|
40
|
1.570.5060.50
|
|
|
NPT 1 1/4"
|
33.5
|
18
|
40
|
55
|
40
|
1.573.5460.70
|
|
|
M63
|
46
|
14
|
36
|
65
|
51
|
1.570.6360.50
|
|
|
NPT 1 1/2"
|
37.5
|
20
|
42
|
65
|
51
|
1.570.6460.70
|
|
