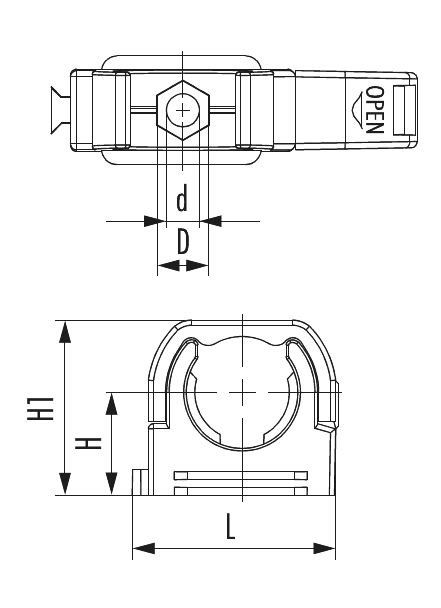

| Size DN | d (mm) | D (mm) | L (mm) | H (mm) | H1 (mm) | 适配金属软管DN | 订货号 | |
|---|---|---|---|---|---|---|---|---|
|
10
|
5
|
7
|
28.7
|
15.75
|
27,5
|
10
|
1.534.0901.00
|
|
|
12
|
5.3
|
8.3
|
29.8
|
13.1
|
24
|
12
|
1.534.1101.00
|
|
|
14
|
5.3
|
8.5
|
35.2
|
17.75
|
29,3
|
14
|
1.534.1401.00
|
|
|
17
|
5.3
|
8.5
|
40.2
|
19.75
|
33,2
|
17
|
1.534.1601.00
|
|
|
23
|
5.3
|
8.7
|
52.6
|
23.5
|
40,5
|
23
|
1.534.2101.00
|
|
|
29
|
6.5
|
11
|
60.7
|
27
|
48
|
29
|
1.534.2901.00
|
|
|
37
|
6.5
|
11
|
69
|
30.4
|
57
|
37
|
1.534.3601.00
|
|
|
50
|
6.5
|
11
|
87
|
37.9
|
71
|
50
|
1.534.4801.00
|
|
