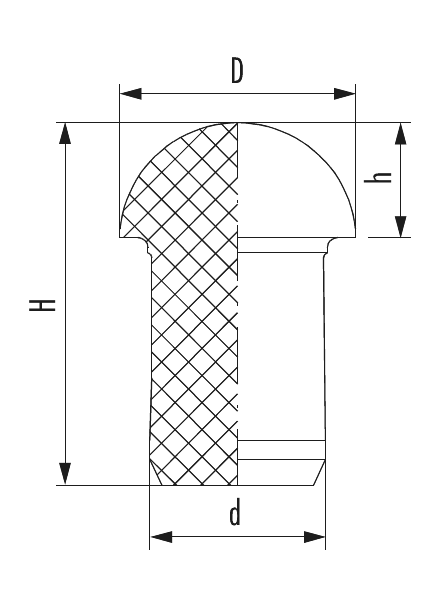

| Suitable for AG | Suitable for AG2 | Suitable for AG3 | D (mm) | d (mm) | H (mm) | h (mm) | 订货号 | |
|---|---|---|---|---|---|---|---|---|
|
PG 7
|
M12 x 1,5
|
-
|
8.5
|
6.3
|
18
|
4.5
|
1.296.0701.61
|
|
|
PG 9
|
M16 x 1,5
|
NPT 3/8"
|
11
|
7.8
|
20.5
|
5.5
|
1.296.0901.61
|
|
|
PG 11
|
M16 x 1,5
|
-
|
13.5
|
9.8
|
22
|
5.5
|
1.296.1101.61
|
|
|
PG 13,5
|
M20 x 1,5
|
NPT 1/2"
|
16
|
11.8
|
26.5
|
8
|
1.296.1301.61
|
|
|
PG 16
|
M20 x 1,5
|
NPT 1/2" / 16
|
18.5
|
13.8
|
28.8
|
9
|
1.296.1601.61
|
|
|
PG 21
|
M25 x 1,5
|
NPT 3/4"
|
22
|
17.8
|
32
|
11
|
1.296.2101.61
|
|
|
PG 29
|
M32 x 1,5
|
NPT 1" / NPT 1 1/4"
|
29
|
25
|
35.5
|
10
|
1.296.2901.61
|
|
|
PG 36
|
M40 x 1,5
|
NPT 1 1/2"
|
38
|
32
|
39
|
11
|
1.296.3601.61
|
|
