| 图片 | Crimp contact | Crimp range | 订货号 | |
|---|---|---|---|---|
 |

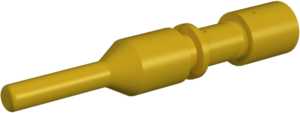

Crimp pin signal 2 mm machined
|
1 – 4 mm²
|
7.015.952.001
|
|
 |

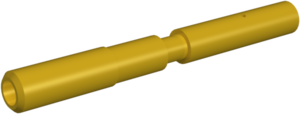

Crimp socket signal 2 mm machined
|
1 – 4 mm²
|
7.015.952.002
|
|
|
|
Crimp pin signal 2 mm machined
|
0.14 – 0.75 mm²
|
7.015.952.003
|
|
|
|
Crimp socket signal 2 mm machined
|
0.14 – 0.75 mm²
|
7.015.952.004
|
|
 |
Crimp pin power 3,6 mm machined
|
1.5 – 4 mm²
|
7.015.953.601
|
|
 |
Crimp socket power 3,6 mm machined
|
1.5 – 4 mm²
|
7.015.953.602
|
|
 |
Crimp pin power 3,6 mm machined
|
6 – 6 mm²
|
7.015.953.611
|
|
 |
Crimp socket power 3,6 mm machined
|
6 – 6 mm²
|
7.015.953.612
|
|
 |
Crimp pin power 3,6 mm machined
|
10 – 10 mm²
|
7.015.953.621
|
|
 |
Crimp socket power 3,6 mm machined
|
10 – 10 mm²
|
7.015.953.622
|
|
 |
Crimp pin power 3,6 mm machined
|
10 – 10 mm²
|
7.015.953.623
|
|
 |
Crimp socket power 3,6 mm machined
|
10 – 10 mm²
|
7.015.953.624
|
|
 |
Crimp pin power 3,6 mm machined
|
16 – 16 mm²
|
7.015.953.631
|
|
 |
Crimp socket power 3,6 mm machined
|
16 – 16 mm²
|
7.015.953.632
|
|
